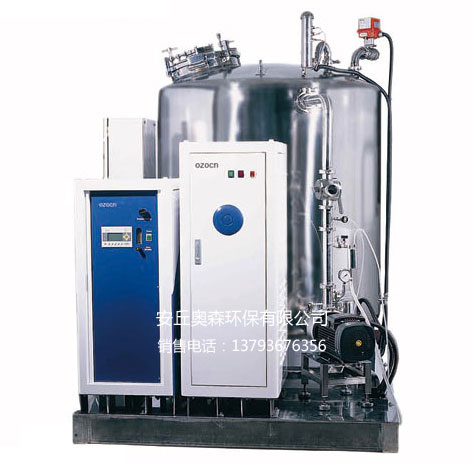

OS-SY系列臭氧水系统主要由PSA富氧气源机，SY系列臭氧发生器，高效气水混合装置，气液分离罐（选配）组成。
OS-SYseriesof ozone water system is mainly consisted of PSA oxygen-rich source machine, SY series ofozone generators, high efficiency gas-water mixing device and gas-liquidseparation tank (optional).

■ 应用领域 Application areas

① 制药、食品、医疗等行业的物体表面灭菌，包括纯化水管道，纯化水储罐，纯化水处理等。

② 食品加工用水，水产养殖用水，地下水的杀菌消毒。

① Applied to surface sterilization inpharmaceutical, food, medical and other industries, including purified waterpipes, purified water storage tank, purified

water treatment and so on.

② Applied to water disinfection for foodprocessing, aquaculture and ground water.

■ 设备技术特点 Device technical characteristics

1. PSA富氧气源处理技术（氧气源），净化干燥、降氮制氧，可以高效率的制造不含NOX的纯净高浓度臭氧。O₃浓度高。

2. 高效气水混合装置可根据用户要求，选择为尼克尼气水混合泵，增压泵+美国进口文丘里水射器，钛合金曝气头。

3. 可以进行SH系列臭氧发生器单独控制，制取臭氧水同时，可对空气进行杀菌消毒，实现了一机多用，节省了固定投资和运行费用。

1. Bythe technology of PSA fully automatic oxygen machine’s gas source(oxygen-source) processing, which helps to dry cleaning and reduce nitrogen inoxygen making, we can efficiently manufacture high concentration pure ozonewithout NOX. High concentrations of O3.

2. High-efficiencygas-water mixing device has options of Nikuni mixing air- water pump or boosterpump + U.S. imports of Venturi water-jet device, titanium aeration head.Supplied according to user requirements.

3. SYseries ofozone generators can be individually controlled. At the time of preparation ofozone water, can carry out air sterilization and disinfection to realize amulti-purpose machine, saving fixed investment and operating costs.

■ OS-SY系列臭氧水系统主要规格和技术参数

OS-SY Series Ozone Water Systems Main specifications and technicalparameters

	产品名称	型号	额定水处理量		臭氧水浓度	臭氧产量	高效混合器规格	备注
	产品名称	型号	额定水处理量		Concentration of	Ozone	高效混合器规格	备注
					Concentration of	Ozone
	Name	Model	Nominal water	volume			Efficient Mixer Specification	Remarks
					ozone water	production
		Unit	T/h		ppm	g/h	mm

	高浓度臭氧	OS-SY1	0.5-1			40	SQH-Ⅰ	进水口压力应
	水系统	OS-SH2	1-2			80	SQH-Ⅰ	≥0.25Mpa
	水系统							≥0.25Mpa
	High Concentration	OS-SH3	2-3		2.0-5.0	120	SQH-Ⅱ	The inlet pressure should
	High Concentration	OS-SH4	3-5			160	SQH-Ⅲ	The inlet pressure should
	Ozone Water Systems	OS-SH4	3-5			160	SQH-Ⅲ	be ≥ 0.25Mpa
	Ozone Water Systems							be ≥ 0.25Mpa
		OS-SH5	5-10			200	SQH-Ⅳ

注：① 制药、食品、医疗等行业的物体表面灭菌，包括纯化水管道，纯化水储罐，纯化水处理等；
	② 以上参数仅为参考，具体要求根据用户实际需要另行设计；
	③ 括号内数值为以氧气为气源时所需要提供的臭氧发生器产量。
	Notes: ① Applied to surface sterilization in the pharmaceutical, food, medical and other industries, including purified water pipes, purified water storage tank,							purified water and so on;

② The above parameters for referenceonly, and specific requirements can be designed according to the actual needsof the user;

③ Values in brackets are ozone generatoroutputs for oxygen source.

产品名称	型号	额定水处理量	臭氧水浓度	臭氧产量	高效扩散器规格	备注
产品名称	型号	额定水处理量	Concentration of	臭氧产量	Specification of Efficient	备注
			Concentration of		Specification of Efficient
Name	Model	Nominal water volume		Ozone production		Remarks
			ozone water		Diffuser
	Unit	T/h	ppm	g/h	mm
低浓度臭氧水	OS-SH1	1-3		20	300×2500
处理系统						以空气为气源
处理系统	OS-SH2	3-5		30	500×2500	以空气为气源
Low Concentration	OS-SH3	5-10		60	800×3200	With air as the gas

Ozone Water	OS-SH4	10-20	0.5-1.5	120	1000×3500	source
Treatment Systems	OS-SH5	20-30		200	1200×3800
Treatment Systems
	OS-SH6	30-50		300	1500×4100

注：① 食品加工用水，水产养殖用水，地下水的杀菌消毒。

② 以上参数仅为参考，具体要求根据用户实际需要，用户水质，另行设计。

③ 进水口压力应≥0.25Mpa

Notes: ① Applied to water sterilization andwastewater treatment in the food process, animal husbandry and ground water.

② The above parameters for referenceonly, and specific requirements can be designed according to the actual needsof the user and local water quality.

③ The inlet pressure should be ≥ 0.25Mpa
