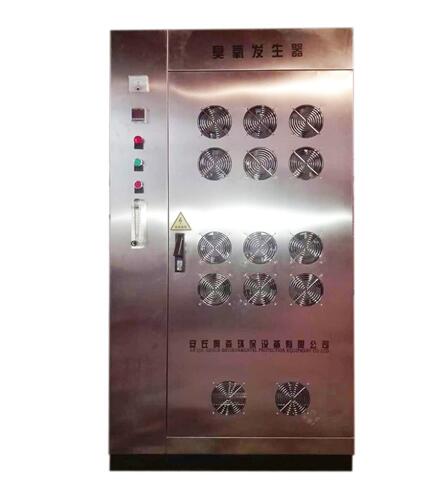

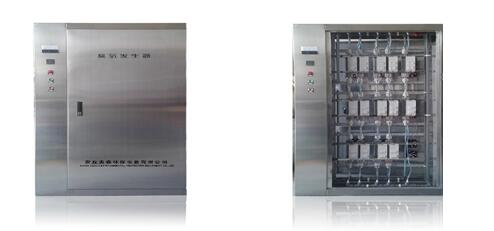

OF-L系列管式风冷臭氧发生器(100g-600g)

OF-L系列管式风冷臭氧发生器，主要由全无油压缩空气系统及净化系统（空气压缩站、冷冻干燥器、精密过滤器、PSA富氧干燥机）、臭氧发生系统、PLC触摸屏控制或微电脑自动控制等组成。

OF-Lseries tube-type air-cooled ozone generators are mainly consisted of theoil-free compressed air system and purification system (air compressor station,refrigeration dryer, precision filter, PSA oxygen-rich drying machine), ozonegeneration system, PLC Touch Screen control or microcomputer automatic controlsystem and so on.

■     应用领域

Application areas

 1.制药、生物制品、遗传基因工程等空调净化系统要求无菌操作的生产洁净区HVAC系统空气消毒灭菌，为制药企业GMP认证提供完善服务；食品行业的包装材料车间和加工车间空气消毒灭菌，协助食品企业通过HACCP认证以及QS认证。完全可以代替紫外线灯照射和化学熏蒸，没有残留污染。

 1.  Appliedto the HVAC system’s air sterilization for the air conditioning and cleaningsystem which required aseptic area in the pharmaceuticals, biological products,genetic engineering, we can provide comprehensive services of the GMPcertification for pharmaceutical companies; also applied to the airdisinfection and sterilization in the food industry’s packaging material andprocessing plant, we can help food enterprises through HACCP certification andQS certification. It can completely replace the ultraviolet light irradiationand chemical fumigation, and bring no residual contamination.

■     性能特点

Technicalcharacteristics

OF-L系列管式风冷臭氧发生器核心技术采用美国专利技术，管式风冷智能间隙放电，臭氧发生器与PSA全自动富氧机采用组合式结构。放电系统采用管式风冷智能间隙放电技术，臭氧发生器电极采用冠状合金材料，电源系统采用新型高效电源。

OF-L series tube-type air-cooled ozone generators’ coretechnology is the U.S. patented technology, tube-type air-cooled smartmicro-gap discharge. Ozone generators and PSA fully automatic oxygen machine iscomposite structured. In discharge system, we adopt smart-tube air-cooledmicro-gap discharge technology, we use corona electrode alloy material for theozone generators and new highly efficient power supplies for the power system.

◆ 美国专利技术，系统稳定运行。

◆ 采用稀土介质材料放电体，耐电晕、击穿性能远优于普通玻璃和陶瓷介质。

◆ 新型高效电源。

◆臭氧系统的放电采用模块式组合结构，独立放电单元，当单个放电体出现故障时，不影响整机的正常运转。臭氧产量可调，可实现多档位工作。

◆ PLC可编程控制系统或者普通微电脑自动控制，数码显示，机电一体化设计。

◆ 放电管寿命长，30000小时（国内技术一般为6000-8000小时）。

◆  臭氧浓度高，PSA全自动富氧机气源处理技术，净化干燥、降氮制氧，可以高效率的制造不含NOX的纯净高浓度臭氧。臭氧浓度高达1000-8000ppm。

◆ 臭氧发生器系统采用臭氧发生器与PSA全自动富氧机组合式结构，占地空间小，操作灵活简便。

◆ 冷却方式采用风冷结构。

◆ 臭氧气体集中输出，且出口带有0.1Mpa压力。

◆ U.S. patent technologies, system runsstably.

◆ The discharge body is consisted of rareearth dielectric material, whose performance of anti-corona and anti-breakdownis far superior to glass and ceramic medium.

◆ Newly high efficiency power supply.

◆  Discharge of ozone system uses modularstructure and separate discharge unit. When a single discharge body fails, willnot affect the normal operation of machine. Ozone output is adjustable withmulti-position selective switch.

◆ With PLC programmable control or thecommon microcomputer automatic control system, digital display, mechanical andelectrical integration design.

◆ With long service time of dischargetube, more than 30000 hours (generally 6000-8000 hours by domestic technology).

◆ With high concentrations of ozone. Bythe technology of PSA fully automatic oxygen machine’s gas source processing,which helps to dry cleaning and reduce nitrogen in oxygen making, we canefficiently manufacture high concentration pure ozone without NOX. Ozoneconcentration is up to 1000-8000ppm.

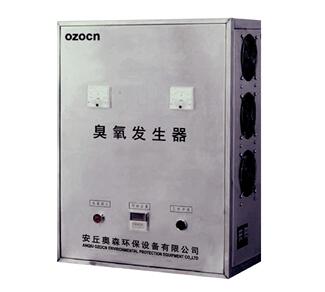

OF-B（Y）系列臭氧发生器 OF-SSeries ozone gener

■     应用领域

Application areas

制药、生物制品、遗传基因工程、畜牧养殖、动物房、医院手术室、化验室、食品等要求无菌操作的洁净车间的杀菌消毒以及除臭除味等，完全可以代替紫外线灯照射和化学熏蒸，没有残留污染。

Applied to air sterilization, disinfection and deodorant orodor removal for the clean workshop, where aseptic area is required in thepharmaceuticals, biological products, genetic engineering, animal husbandry,animal room, the hospital operating rooms, laboratories, food and so on. It cancompletely replace the ultraviolet light irradiation and chemical fumigation,and bring no residual contamination.

■     设备技术特点

Device technicalcharacteristics

1.全不锈钢304#外壳，主机和控制系统根据用户需求，机电一体化设计，或为组合式设计，实现异地控制。

2.可编程微电脑（定时）自动化控制，实现无人值守。

3.内置专用低噪音风机，加速臭氧扩散速度，可直接置于洁净区。可以设计为壁挂式、落地式，也可以根据用户需要设计为带有万向轮的移动式。

4.高浓度沿面双介质放电管，干式免维护变压器，性能稳定。

1.  With304# stainless steel shell, host and control system can be designed on userrequirements, can be mechanical and electrical integration design or thecomposite design by which can implement remote control.

2.  Programmable microcomputer (timing)automatically control to achieve unattended.

3.  Specialbuilt-in low-noise fan to accelerate the diffusion rate of ozone, can bedirectly placed in clean areas. Can be designed as wall type, floor type andmobile with universal wheel according to users’ needs.

4.  With discharge of high concentrationalong the surface, maintenance-free dry-type transformers, and stableperformance.
